How to Choose the Right Automatic Hot Stamping Machine: A Buyer's Guide

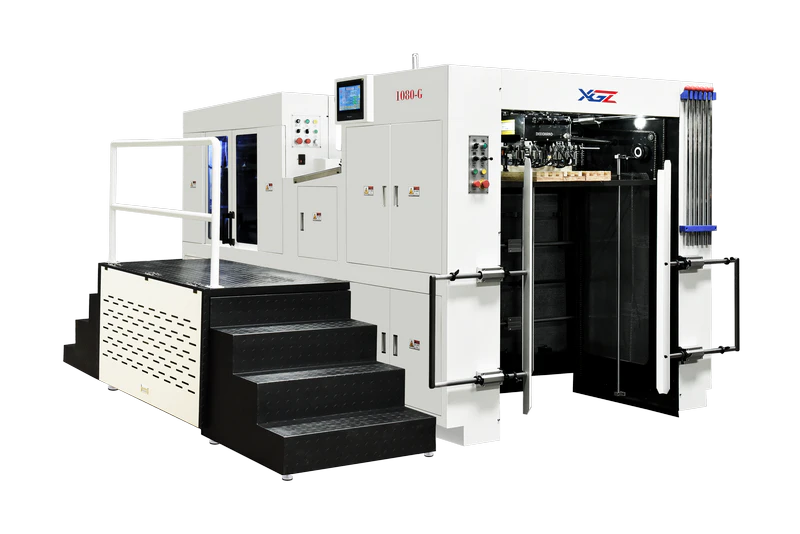

Investing in an automatic hot stamping machine is a significant capital decision that impacts your production capacity, product quality, and operational efficiency for years to come. This guide walks through the framework our application engineers use with every customer evaluation. For a complete look at our flagship platform, see the XG1080G Fully Automatic Hot Stamping Machine.

1. Define Your Production Requirements

Start by answering these questions:

• What is your maximum sheet/substrate size? Common formats range from 500×350 mm to 1060×740 mm.
• What paper/material thickness range do you need? Most machines handle 100–600 g/m², but verify compatibility with your specific substrates.
• What is your required hourly output? Entry-level machines process 2,000–3,000 pcs/hr, while high-end models like the XG1080G reach 5,500 pcs/hr.

2. Specification Comparison Across Machine Tiers

3. Key Features to Evaluate

Feed system: Air-suction feeding with adjustable suction heads ensures compatibility with both thick and thin substrates. Look for dual elevator platforms that allow non-stop paper loading.

Registration accuracy: High-precision double pull-gauge systems with fiber-optic tracking ensure accurate foil placement on every sheet — critical for multi-color stamping with our Holographic Rainbow Foil or Premium Gold Foil.

Temperature control: PLC-controlled systems with solid-state contactors delivering ±2 °C accuracy are the industry standard. Consistent temperature is essential for uniform foil adhesion and brilliance.

4. Automation Level & Total Cost of Ownership

Fully automatic machines handle loading, alignment, stamping, and delivery — allowing single-operator production. Over a five-year horizon, the labor savings typically pay back the premium versus semi-automatic alternatives within 18–30 months. Pair the press with downstream AF-1350 Slitting and die-cutting equipment for a complete post-press line.

5. After-Sales Support

Consider the manufacturer's ability to provide installation training, spare parts availability, remote diagnostics, and on-site service. A machine is only as good as the support behind it. Request an XG1080G evaluation visit to see the platform in production at our Shanghai facility.

Conclusion

The right hot stamping machine is the one that matches your production volume, substrate range, and quality target — not the one with the longest spec sheet. For deeper context on the foiling technologies your machine will run, see our cold vs hot foil overview and ROI deep-dive. Browse our complete Post-Press Equipment range when you're ready to specify.
